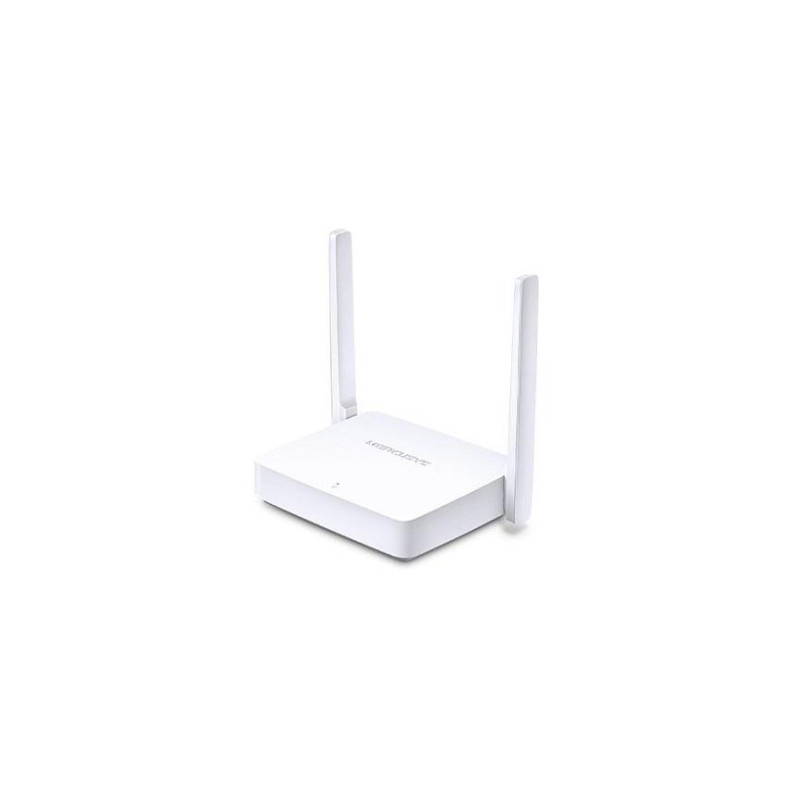

Mercusys MW301R 300MBPS Wireless N Router

  • 300Mbps wireless transmission rate is ideal for basic work
  • Two 5dBi antennas provides broad wireless coverage
  • Intuitive webpage guides you through the setup process in minutes
Dimensions (W X D X H)135.77x93.31x25.85mm
External Power Supply5VDC/0.6A
Antenna Type2 x 5dBi fixed omni directional antennas
Signal Rate

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

ButtonRESET
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.4 - 2.4835GHz
Reception Sensitivity

270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -77dBm@10% PER

54M: -76dBm@10% PER

11M: -90dBm@8% PER

6M: -92dBm@10% PER

1M: -97dBm@8% PER

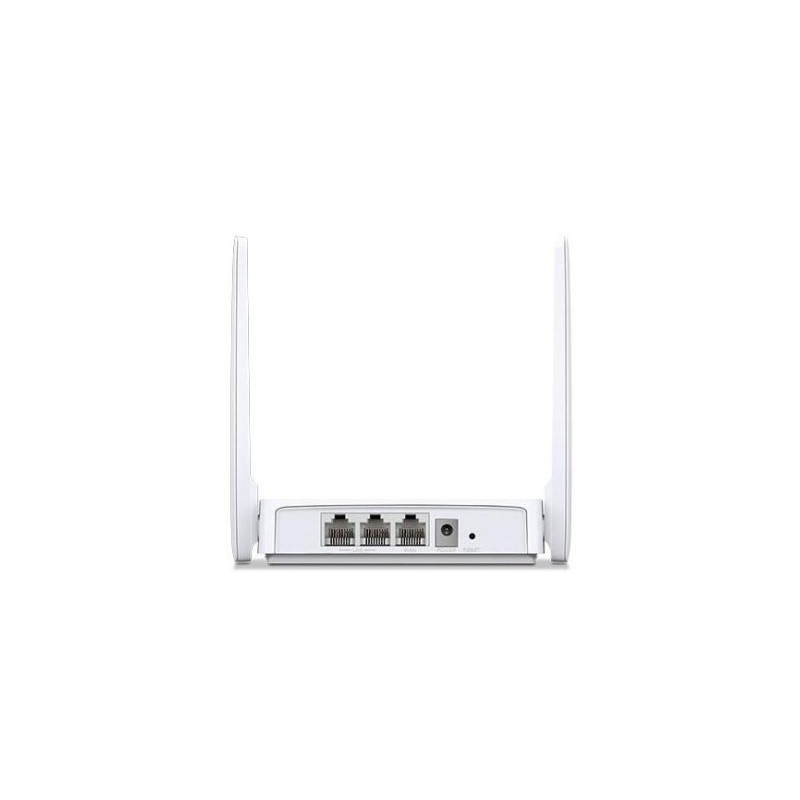

Interfaces

2 10/100Mbps LAN ports

1 10/100Mbps WAN port

CertificationsCE, ROHS
Package Contents

300Mbps Wireless N Router

MW301R

Power adapter

Quick Installation Guide

Ethernet cable

Environment

Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing

Transmission Power<20dBm
Wireless Security64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Wireless FunctionsWDS bridge
WAN TypeDynamic IP/Static IP/PPPoE/L2TP/PPTP
Management

Parental Control

Access control

Local management

Remote management

DHCPServer
Port ForwardingVirtual server, UPnP, DMZ
Dynamic DNSDynDNS NO-IP
Firewall SecurityIP and MAC address binding
ProtocolsIPv4
Guest Network2.4GHz guest network

Mercusys MW301R 300MBPS Wireless N Router

  • Brand: Mercusys
  • Product Code: MW301R
  • Availability: In Stock With Supplier
  • R359.00
